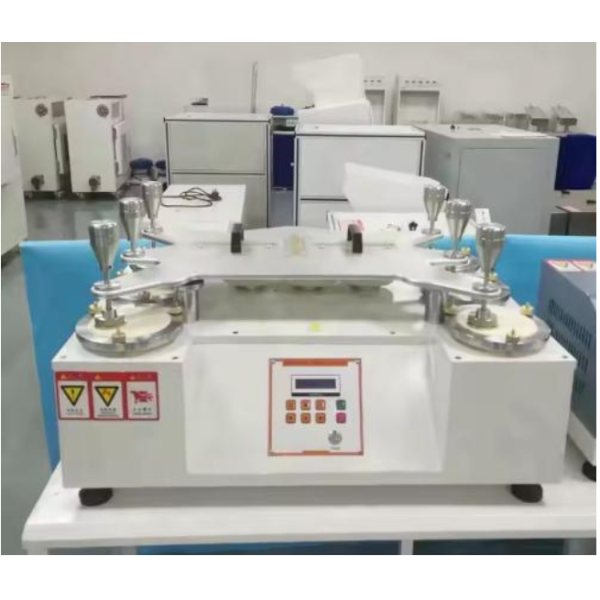

UP-1006 Digital Martindale Abrasion and Pilling Tester With Quantitative Pilling Evaluation
Product Overview
The UP-1006 Digital Martindale Abrasion and Pilling Tester is designed to determine the abrasion resistance of footwear vamp materials and various textiles. Samples are rubbed against known abrasion materials at low pressures in continuously changing directions to measure wear resistance.
The unique design allows removal of individual sample holders for examination without lifting the top motion plate, facilitating efficient testing procedures.
Compliance Standards
- ISO 20344 section 6.12
- ISO 5470-2
- AS/NZS 2210.2 section 6.12
- GB/T 20991 section 6.12
- EN 344-1 section 5.14
- BS3424.24
- ASTMD4966
- SATRA TM31
Technical Specifications
| Parameter |
Specification |
| Control Mode |
LCD Counter Display |
| Abradant Table |
≥ 125mm |
| Lissajous Figure |
60±1 mm x 60±1 mm |
| Rotational Speed |
47.5 ± 2.5 r/min |
| Exposed Area of Specimen Holder |
645 ± 5 mm² |
| Pressing Weight |
Mass: (2.5 ± 0.5) kg, Diameter: (120 ± 10) mm |
Test Pressure Configurations
Configuration A: For workwear, upholstery, bed linen and technical fabrics (12kPa nominal pressure)
- Specimen holder: (198 ±2)g
- Larger loading piece: (597±5)g
- Total mass: (795±7)g
Configuration B: For apparel and household textiles (9kPa nominal pressure)
- Specimen holder: (198 ±2)g
- Smaller loading piece: (397±5)g
- Total mass: (595±7)g
Our Service Process
We provide comprehensive Consultative Selling services throughout the entire business process:
1. Customer Inquiry Process
- Discuss testing requirements and technical details
- Suggest suitable products based on customer needs
- Provide competitive pricing according to requirements
2. Customization Process
- Create detailed drawings for customized requirements
- Provide reference photos showing product appearance
- Confirm final solution and pricing
3. Production and Delivery
- Manufacture machines according to confirmed specifications
- Share production progress photos
- Perform factory or third-party calibration as required
- Conduct comprehensive testing and quality checks
- Coordinate timely delivery and shipping
4. Installation and After-Sales
- Provide field installation services
- Offer comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers.
For technical issues, contact us via email or phone. We troubleshoot problems through conversation or video chat and provide solutions within 24-48 hours.
What is your delivery timeline?
Standard machines in stock: 3-7 working days
Custom orders: 15-20 working days after payment
Expedited arrangements available for urgent requirements
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to specific requirements. We provide OEM and ODM services, including custom logo placement.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
