UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0.001 ~ 2.0 W/(m·K) Range for Insulation Testing

Name: UP5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0001 20 WmK Range for Insulation Testing
Brand: YOUBI
Price: 1 USD

Wholesale UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0.001 ~ 2.0 W/(m·K) Range for Insulation Testing from china suppliers

Thermal Conductivity Range : 0.001 ~ 2.0 W/(m·K)

Max Sample Size : 300 × 300 mm, thickness 5 ~ 100 mm

MOQ : 1

Delivery Time : 5~10 work days

Power Supply : AC 220V, 50/60Hz

Model Number : UP-5031

Language : Chinese and English

Payment Terms : D/P,T/T,Western Union

Hot Plate Temperature Range : RT ~ 110 ℃

Price : Negotiable

Measurement Accuracy : ±3%

Supply Ability : 20 Unit/month

Test Method : Guarded Hot Plate Steady-State Method

Brand Name : YOUBI

Model : UP-5031

Packaging Details : Professional export packaging

Cold Plate Temperature Range : 0 ~ 60 ℃ (Optional: -10 ~ 60 ℃)

Certification : CE, ISO

Service Support : OEM ODM

Place of Origin : CHINA

Contact Now

UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus

Product Overview

The UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus employs the classic guarded hot plate steady-state method principle. This advanced testing system effectively eliminates edge heat loss through its guard heating structure, delivering high-precision and repeatable test results for low thermal conductivity insulation materials.

Equipped with independent hot plate and cold plate temperature control systems, high-precision temperature sensors, and professional Windows testing software, this apparatus supports automatic data collection, calculation, curve display, and test report generation.

Compliance Standards

ISO 8302: Thermal insulation - Determination of steady-state thermal resistance and related properties - Guarded hot plate method
ASTM C177: Standard Test Method for Steady-State Heat Flux Measurements and Thermal Transmission Properties by Means of the Guarded-Hot-Plate Apparatus

Applications

Suitable for testing flat slab-shaped thermal insulation and low heat-conductive materials including:

Building insulation materials
Advanced insulation materials
Plastic and rubber materials
New energy materials
Powder and loose fibrous materials
Materials research laboratories and third-party testing institutes

Technical Specifications

Parameter	Specification
Test Method	Guarded Hot Plate Steady-State Method
Thermal Conductivity Range	0.001 ~ 2.0 W/(m*K)
Measurement Accuracy	±3%
Repeatability	≤±1%
Max Sample Size	300 × 300 mm, thickness 5 ~ 100 mm (200×200mm optional)
Hot Plate Temperature Range	RT ~ 110 ºC
Cold Plate Temperature Range	0 ~ 60 ºC (Optional: -10 ~ 60 ºC)
Temperature Control Precision	±0.05 ºC
Temperature Resolution	0.01 ºC
Temperature Difference Between Hot & Cold Plate	Adjustable 15~25 ºC
Control System	PC automatic control, English operation software
Auxiliary Equipment	Matching circulating water bath
Power Supply	AC 220V, 50/60Hz

Product Images

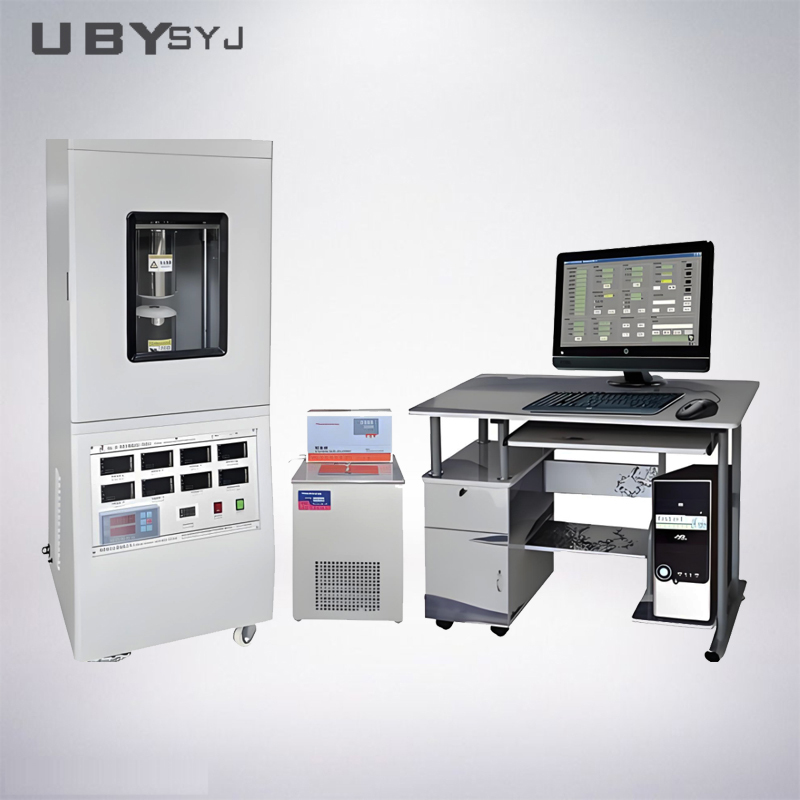

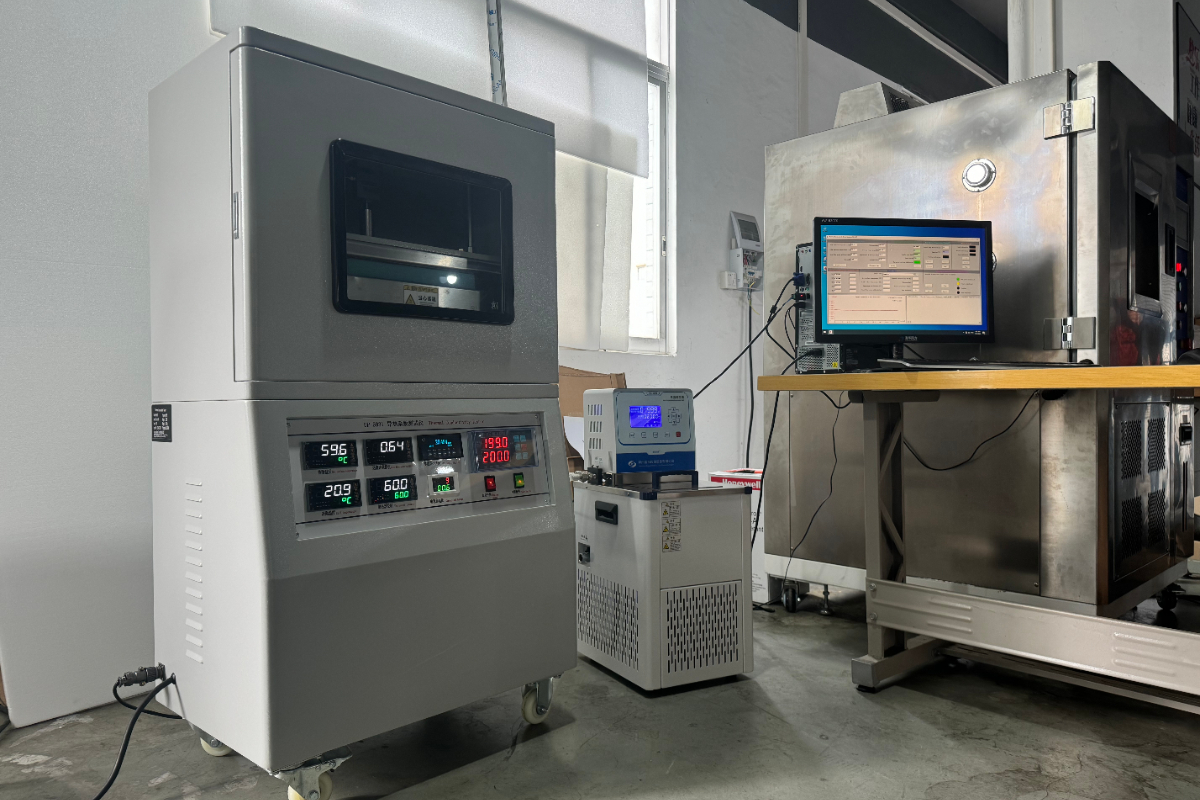

UP-5031 Automatic Guarded Hot Plate Thermal Conductivity Apparatus with 0.001 ~ 2.0 W/(m·K) Range for Insulation Testing

Our Service Process

1) Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Providing the most competitive pricing according to customer requirements.

2) Specifications Customization Process:

Creating detailed drawings for customized requirements confirmation. Providing reference photos to illustrate product appearance. Finalizing solution and confirming pricing with customer.

3) Production and Delivery Process:

Manufacturing machines according to confirmed PO requirements. Providing production progress photos. Conducting factory calibration or third-party calibration as required. Final inspection and professional packing before timely delivery.

4) Installation and After-Sales Service:

Providing field installation services and comprehensive after-sales support to ensure optimal equipment performance.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for our international customers.

If your equipment requires service, you can contact us via email or phone. We will diagnose the issue through conversation or video chat if necessary. Once the problem is confirmed, we provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock standard machines: 15-20 working days after payment receipt

We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

Upon ordering, we provide comprehensive English operation manuals and instructional videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable to begin operation. When necessary, we provide on-site installation assistance.
