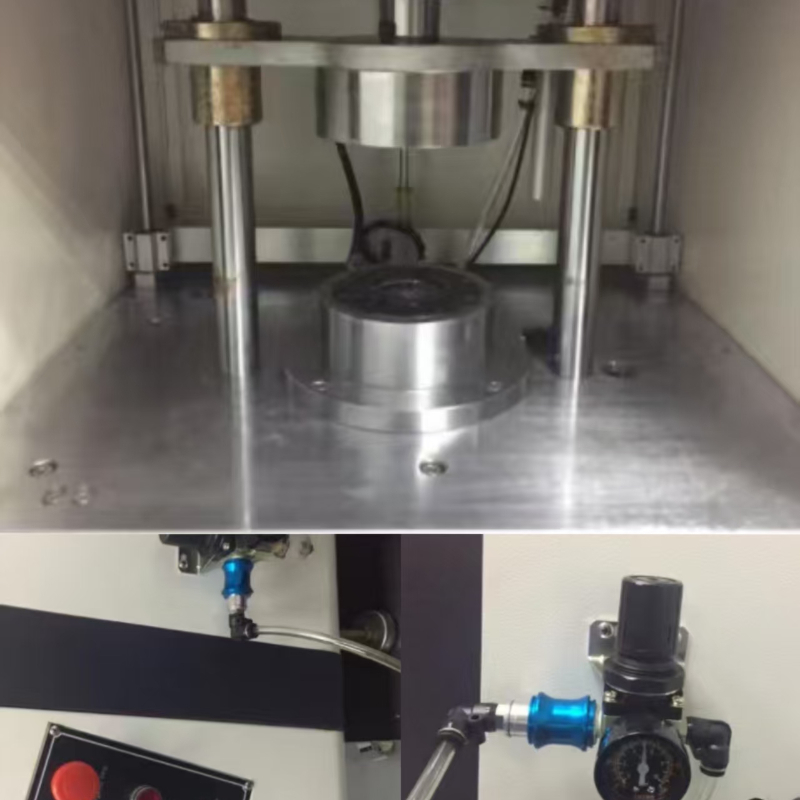

UP-5009 Laboratory Mooney Viscometer Tester
For Natural Synthetic Rubber Compound Mooney Viscosity Measurement
Product Introduction
The Mooney Viscometer is a core laboratory testing instrument for the rubber and elastomer industry. It measures Mooney viscosity, Mooney scorch time, and stress relaxation characteristics of uncured raw rubber, rubber compounds, and masterbatch. The instrument detects the shear torque resistance of a rotor rotating inside a rubber sample under constant temperature, evaluating rubber processability, batch consistency, and premature vulcanization risk.
Equipped with high-precision torque sensor and intelligent temperature control system, the UP-5009 supports computer data acquisition, curve display, automatic data recording, and export functions.
Compliance Standards
- ASTM D1646
- ISO 289
- GB/T 1232
- GB/T 1233
- DIN 53523
- JIS K6300
Applications
Suitable for incoming inspection, production quality control, and material research & development, including:
- Natural rubber, synthetic rubber, rubber compound & masterbatch manufacturers
- Tire, rubber hose, sealing parts, conveyor belt, and rubber footwear factories
- Universities and material research centers
Technical Specifications
| Item |
Specification |
| Measuring Range |
0 ~ 200 Mooney Units (MU) |
| Mooney Value Resolution |
0.01 MU |
| Measuring Accuracy |
±0.5 MU |
| Standard Rotor Speed |
2 ±0.02 rpm |
| Rotor Options |
Large rotor Φ38.10 mm (Standard); Small rotor Φ30.48 mm (Optional) |
| Temperature Range |
Ambient ~ 200°C |
| Temperature Control Precision |
±0.3°C; Temperature Resolution: 0.1°C |
| Test Modes |
Mooney Viscosity, Mooney Scorch, Stress Relaxation |
| Closing Method |
Pneumatic clamping |
| Data Output |
USB, RS232; Support curve print & data export |
| Power Supply |
AC220V±10%, 50Hz, 1500W |
| Overall Dimension (W×D×H) |
550 × 620 × 1260 mm |
| Net Weight |
Approx. 180 kg |
