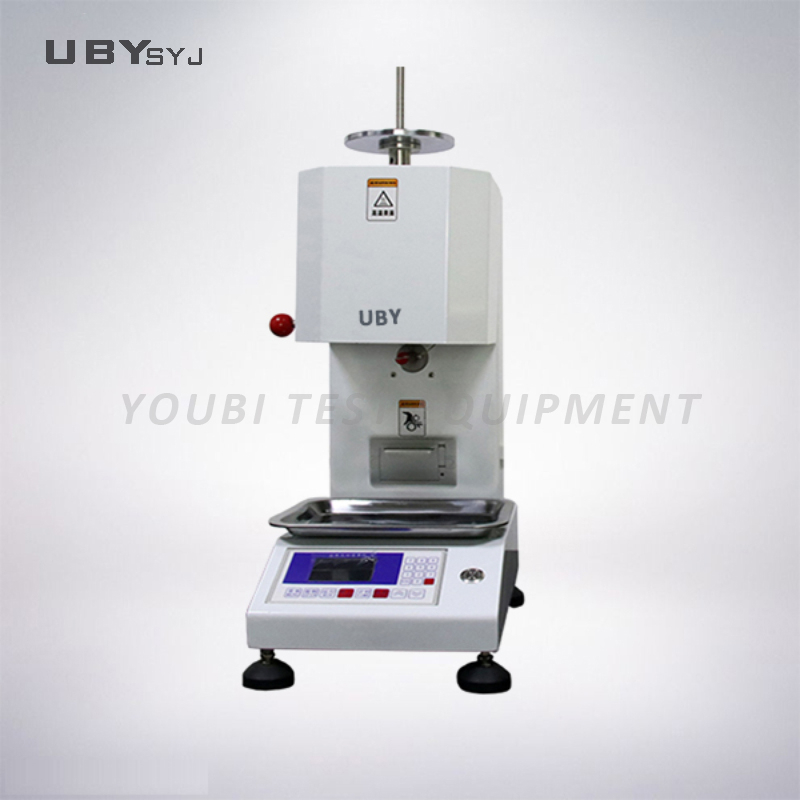

UP-5004 Melt Flow Rate Tester
Product Overview
The UP-5004 Melt Flow Rate Tester is professional laboratory equipment designed to test MFR (Melt Mass-Flow Rate) and MVR (Melt Volume-Flow Rate) of thermoplastics. Under specified temperature and standard load conditions, molten plastic extrudes through a standard die for accurate measurement.
Features high-precision PID temperature control, manual and automatic cutting functions, digital data calculation, and optional built-in printer. Offers stable temperature uniformity, easy operation, and reliable repeatability.
Compliance Standards
- ISO 1133-1:2022 Plastics - Determination of MFR & MVR
- ASTM D1238 Standard Test Method for Melt Flow Rates of Thermoplastics
- GB/T 3682.1-2018
Applications
Suitable for testing various engineering plastics including polycarbonate, polysulfone, fluoroplastic, nylon with high melting temperatures, as well as polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, POM, PC resin and other plastics with lower melting temperatures.
Widely used in plastic production, plastic products, petrochemical industries, and relevant colleges, research institutions, and commodity inspection departments.
Technical Specifications
| Parameter |
Specification |
| Temperature Range |
50℃ ~ 400℃ |
| Temperature Control Accuracy |
±0.2℃; Display Resolution: 0.1℃ |
| Barrel Inner Diameter |
Φ9.550 ±0.025 mm |
| Standard Die Size |
Φ2.095×8.000 mm |
| Piston Head Diameter |
Φ9.475 ±0.010 mm |
| Standard Test Weights |

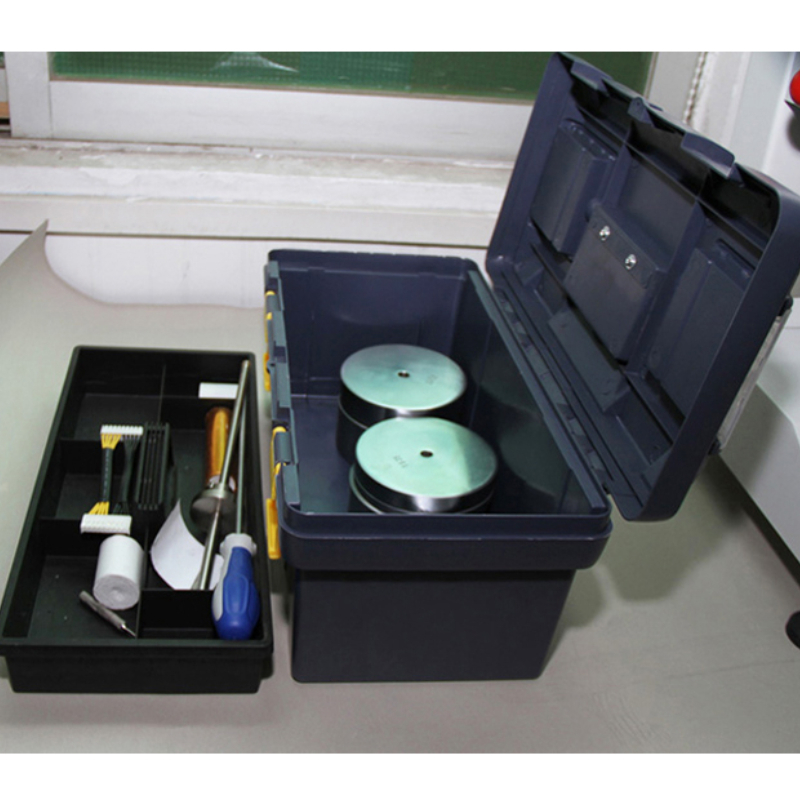

0.325kg, 1.2kg, 2.16kg, 3.8kg, 5.0kg, 10kg, 21.6kg |
| Timing Range |
0 ~ 6000 s, Resolution: 0.01 s |
| Testing Mode |
Mass Method (A) / Volume Method (B) |
| Cutting Mode |
Manual cutting / Automatic timing cutting |
| Power Supply |
AC220V 50Hz (110V optional) |
| Heating Power |
≤600W |
| Overall Dimension |
560×370×620 mm |
| Net Weight |
Approx. 75 kg |
Our Service Process
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
- Customization: Create drawings and reference photos for customized requirements, confirm final solution and pricing.
- Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange timely shipping.
- Installation & Support: Provide field installation and comprehensive after-sales support services.
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. Every machine includes 12-month warranty with free maintenance. For international shipping, we extend to 14 months. Technical support is available via email, phone, or video chat with solutions provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements can be accommodated with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How do I install and operate the machine?
We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
