UP-6002 Semi-automatic Carton Bursting Strength Tester with Digital Display and Pressure Transducer for Paper Packaging Burst Test

  • 1
  • 2
  • 3

MOQ : 1

Delivery Time : 5-15 work days

Sensing Method : Pressure Transducer

Model Number : UP-6002

Model NO. : UP-6002

Supply Ability : 20 Unit/month

Delivery Terms : CIF, DDP, DDU, FedEx, DHL, Fob

Brand Name : YOUBI

Type : Packaging Testing Machine

Payment Terms : D/P,T/T,Western Union

Power Source : AC220V 50Hz

Price : Negotiable

Pressurizing Speed : 170±10 ml/min (High-pressure semi-automatic)

Certification : CE,ISO

Display : Digital

Place of Origin : CHINA

Sample Thickness Range : 0 ~ 10 mm

Packaging Details : Professional Export Wooden Box Packaging.

Contact Now

UP-6002 Semi-automatic Carton Bursting Strength Tester
Product Overview

The UP-6002 Semi-automatic Bursting Strength Tester is designed for testing the bursting strength of various materials including raw paper, corrugated cardboard, cardboard boxes, leather, fabrics, and synthetic leather. This versatile equipment serves industries such as papermaking, color printing packaging, shoemaking, food, electronics, electrical appliances, handbags, bicycles, hardware, and furniture.

The tester complies with multiple national and international standards including GB, ISO, ASTM, BS, DIN, and JIS, making it an ideal testing and research solution for factories, technical supervision departments, inspection agencies, research institutes, and universities.

Key Features
  • System-controlled work platform for easy operation
  • Automatic rising and falling functions
  • Built-in automatic printing capability
  • Data storage and deletion functions
  • Automatic capture of maximum and average test force values
  • Direct reading of test results
Applicable Standards

JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTMD2210, TAPPI T403, ISO2759-2001, GB/T1539

Technical Specifications
Item Specification
Sensing Method Pressure Transducer
Display Mode Digital Display
Operation Mode Semi-automatic
Force Unit kPa, psi (Lbs/in²), kgf/cm², with unit switching function
Pressure Range High pressure type: 0~100 kgf/cm², resolution 0.1 kgf/cm²
Clamp Ring Material SUS304 Stainless Steel
Inner Diameter of Clamp Ring Upper & lower clamp ring: φ31.5±0.05 mm
Hydraulic Fluid 85% Glycerin + 15% Distilled Water
Pressurizing Speed 170±10 ml/min (High-pressure semi-automatic)
Sample Thickness Range 0 ~ 10 mm
Motor Power Shockproof Motor, 1/4 HP
Overall Dimension (L×W×H) 450 × 380 × 550 mm
Net Weight 68 kg
Power Supply Single-phase, AC 220V

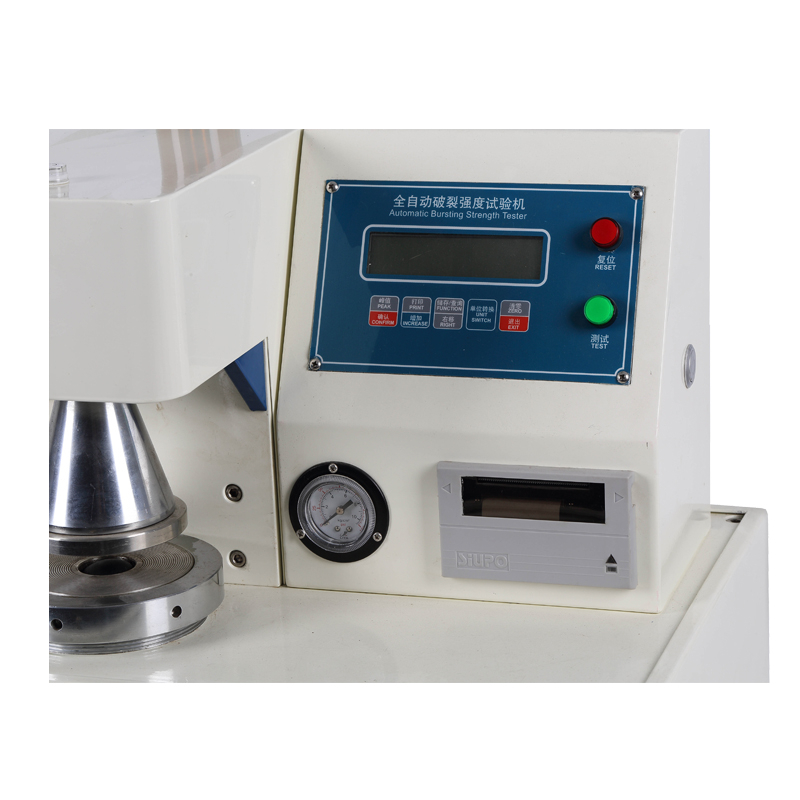

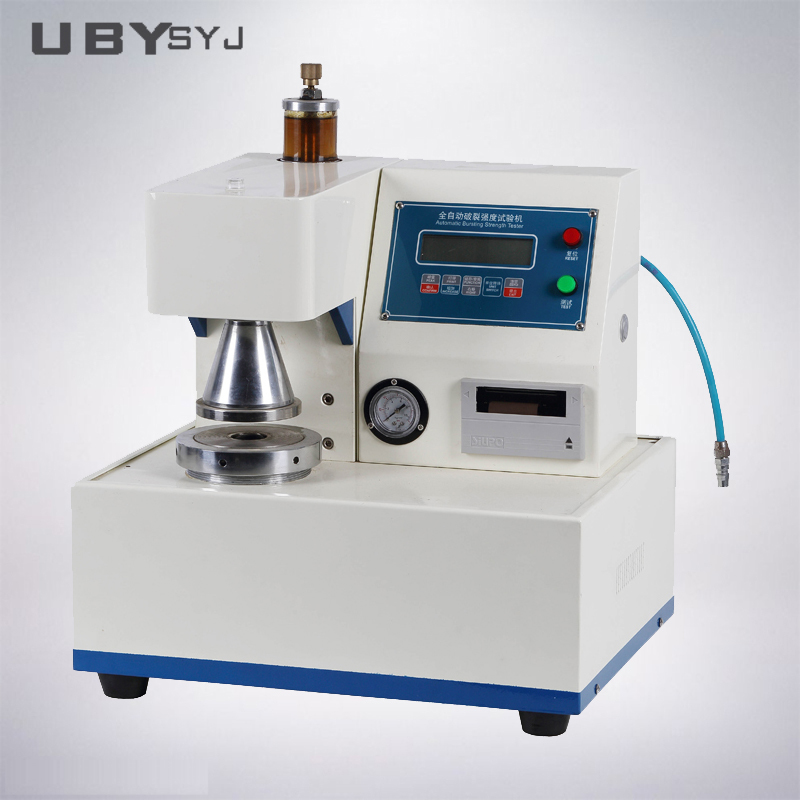

Product Images
UP-6002 Semi-automatic Carton Bursting Strength Tester with Digital Display and Pressure Transducer for Paper Packaging Burst Test UP-6002 Semi-automatic Carton Bursting Strength Tester with Digital Display and Pressure Transducer for Paper Packaging Burst Test UP-6002 Semi-automatic Carton Bursting Strength Tester with Digital Display and Pressure Transducer for Paper Packaging Burst Test
Our Service Process
1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
2) Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
3) Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange timely shipping.
4) Installation and After-sales Service: Provide field installation support and comprehensive after-sales assistance.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months to account for sea transportation. For technical issues, contact us via email or phone for prompt assistance and solutions within 24-48 hours.

2. What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment confirmation; Urgent requests receive special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.


Product Tags:

Semi-automatic carton burst tester



Paper packaging burst strength tester



Digital display burst test equipment
