UP-4032 Leather Water Vapor Permeability Tester with 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172 Compliance

Dongguan Youbi Test Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

UP-4032 Leather Water Vapor Permeability Tester with 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172 Compliance

MOQ : 1

Delivery Time : 5~10 work days

Fan rotate speed : (1400 ± 100) r/min

Model Number : UP-4032

Testing bottle number : 6pcs

Payment Terms : D/P,T/T,Western Union,paypal

Service Support : OEM ODM

Price : Negotiable

Applications : Leather,Shoes

Supply Ability : 30 Unit/month

Language : Chinese and English

Brand Name : YOUBI

Model NO. : UP-4032

Certification : CE,ISO

Bottle mouth diameter : 30±1 mm

Place of Origin : CHINA

Bottles holder speed : 75 ±5cpm

Packaging Details : Professional export wooden box packaging

Contact Now

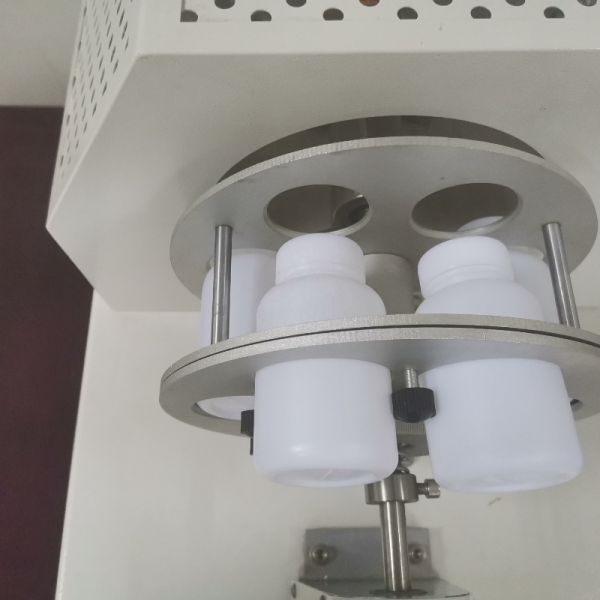

UP-4032 Leather Water Vapor Permeability Tester With 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172
Product Overview

The Leather Water Vapor Permeability Tester is a specialized testing device designed to measure the moisture permeability of upper materials such as leather and textiles. This instrument evaluates materials' ability to absorb and conduct sweat (water vapor) from the wearer's skin surface, serving as a key indicator for measuring footwear comfort.

Operation occurs in a conditioning room under standard temperature (23 ± 2)ºC and humidity (50 ± 5)% RH conditions.

Compliance Standards
  • EN ISO 20344 Section 6.6.2
  • AS/NZS 2210.2 Section 6.6.2
  • GB/T 20991 Section 6.6.2
  • EN 344-1 Section 5.13
  • BS 3144
  • DIN 5333
  • SATRA TM172
Technical Specifications
Parameter Specification
Model UP-4032
Testing Bottle Number 6 pcs
Bottle Mouth Diameter 30 ± 1 mm
Bottles Holder Speed 75 ± 5 cpm
Fan Blades 90 x 75 mm, 3 flat blades in planes inclined at 120° to each other
Fan Rotate Speed (1400 ± 100) r/min
Specimen Size 34 mm
Test Environment Temperature 20 ± 2 ºC or 23 ± 2 ºC (according to standard)
Test Environment Humidity 65 ± 5% RH or 50 ± 5% RH (according to standards)
Balance Accuracy 0.001 g
Power Supply AC220V 50/60HZ
Dimensions 56 × 37 × 38 cm
Weight 50 kg
Product Images
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process
  • Discussion of testing requirements and technical details
  • Recommendation of suitable products based on customer needs
  • Competitive pricing according to customer requirements
Specifications Customization Process
  • Creation of detailed drawings for customized requirements
  • Reference photos provided to show product appearance
  • Final solution confirmation and pricing agreement
Production and Delivery Process
  • Manufacturing according to confirmed PO requirements
  • Production progress photos provided to customers
  • Factory calibration or third-party calibration as required
  • Comprehensive testing and quality checking
  • Professional packing and timely delivery
Installation and After-Sales Service

Professional installation support and comprehensive after-sales service provided.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension to account for sea transportation.

If your machine requires service, contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary. Solutions are provided within 24 to 48 hours after problem confirmation.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock items: 15-20 working days after payment receipt

Urgent requirements receive special arrangement priority

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email after purchase. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
