UP-2000 Shoe Material Peeling Tester with ±0.5% Accuracy, 150mm Test Width, and 800mm Tensile Stroke for Universal Testing

  • 1
  • 2
  • 3

MOQ : 1

Delivery Time : 5-10 work days

Accuracy : ±0.5%

Model Number : UP-2000

Model NO. : UP-2000

Payment Terms : D/P,T/T,Western Union,paypal

Effective Test Width : 150mm

Price : Negotiable

Resolution : 1/250,000

Supply Ability : Professional Export Wooden Carton Packaging

Effective Tensile Strok : 800mm

Brand Name : YOUBI

Type : Universal Testing Machine

Packaging Details : 30 Unit/Month

Certification : CE,ISO

Measurement unit switching : Kgf, gf, N, kN, Ibf

Place of Origin : CHINA

Maxcapacity : 2,5,10,20,50,100kgf any one option

Contact Now

UP-2000 Shoe Material Peeling Tester
Product Overview

The UP-2000 Shoe Material Peeling Tester is a multifunctional mechanical testing equipment designed to test bond strength of leather, rubber, and various shoe materials. Equipped with a TM2101 5-inch color touch screen control system, this tester is ideal for quality control and research applications.

Key Applications
  • Footwear manufacturing
  • Rubber & plastic industry
  • Textile factory operations
  • Wire & cable production
  • Waterproof material plants
  • Metal material processing
  • Third-party material testing labs
  • Product quality inspection laboratories
Technical Specifications
Item Specification
Load Capacity Optional within 500kg
Force Measurement Accuracy Within ±0.5% of indicated value
Display & Control TM2101 5-inch color touch screen
Switchable Units Kg, lb, N
Data Sampling Frequency 200 times/sec
Tester Resolution 1/±25000 of max load, full-range constant resolution without gear shift
Load Sensor Tension & compression dual-purpose sensor
Effective Test Width 150mm
Effective Tensile Stroke 800mm
Test Speed Range 10-300mm/min, stepless speed regulation + 5 fixed speed gears; custom special test speed available on request
Displacement Measurement Accuracy Within ±0.5% of indicated value
Break Point Ratio Setting 0~99%, adjustable break stop threshold for different materials
Safety Devices Upper & lower stroke limit stops, overload auto-protection
Overload Protection Automatic machine protection when load exceeds 10% of max capacity
Standard Fixture 1 set of tensile fixture
Overall Dimension 550×400×1820mm
Net Weight Approx. 100Kg
Power Supply AC 220V, 50Hz

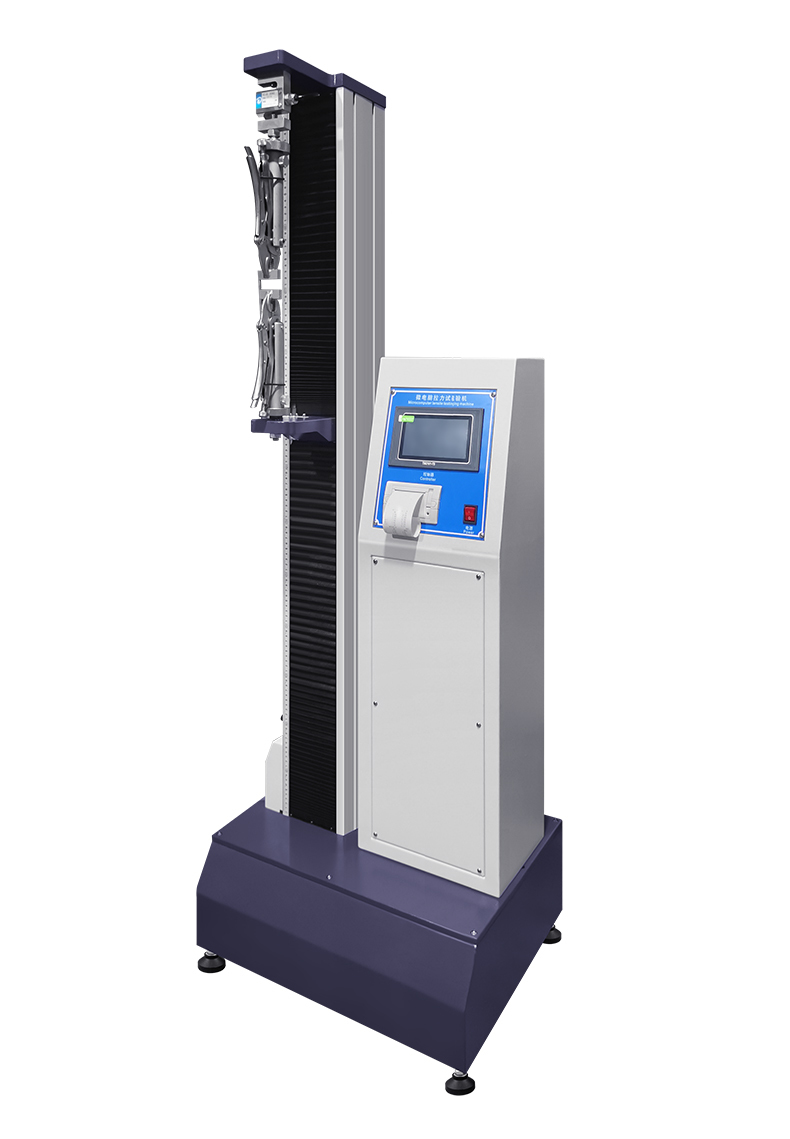

Product Images
UP-2000 Shoe Material Peeling Tester with ±0.5% Accuracy, 150mm Test Width, and 800mm Tensile Stroke for Universal Testing UP-2000 Shoe Material Peeling Tester with ±0.5% Accuracy, 150mm Test Width, and 800mm Tensile Stroke for Universal Testing UP-2000 Shoe Material Peeling Tester with ±0.5% Accuracy, 150mm Test Width, and 800mm Tensile Stroke for Universal Testing
Our Service Process
1) Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing.

2) Specifications Customization:

Creating detailed drawings and reference photos for customized requirements, confirming final solutions and pricing.

3) Production and Delivery:

Manufacturing according to confirmed requirements, providing production updates, conducting calibration, and ensuring timely delivery.

4) Installation and After-Sales:

Providing installation support and comprehensive after-sales service to ensure optimal performance.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension considering sea transportation.

If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock items: 15-20 working days after payment

Urgent requirements receive special arrangements

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We also offer on-site installation assistance when necessary.
