UP-5009 Mooney Viscometer with ±0.3°C Temperature Control Accuracy and 2 rpm Rotor Speed for Rubber Testing

Name: UP5009 Mooney Viscometer with 03C Temperature Control Accuracy and 2 rpm Rotor Speed for Rubber Testing
Brand: YOUBI
Price: 4000 USD

Wholesale UP-5009 Mooney Viscometer with ±0.3°C Temperature Control Accuracy and 2 rpm Rotor Speed for Rubber Testing from china suppliers

Language : Chinese and English

HS Code : 9024800000

Place of Origin : CHINA

MOQ : 1

Payment Terms : D/P,T/T,Western Union

Applications : for Plastic, Rubber, Fiber, Foam, Film, and Film

Specification : Refer to the actual size specifications

Supply Ability : 20 Unit/month

Rotor Speed : 2 rpm ±0.02 rpm

Packaging Details : Professional Export Packing

Model Number : UP-5009

Certification : CE,ISO

Delivery Time : 5~10 work days

Price : 4000

Brand Name : YOUBI

Temperature Control Accuracy : ±0.3°C

Model NO. : UP-5009

Temperature Control Range : Ambient ~ 200°C

Service Support : OEM ODM

Temperature Display Resolution : 0.01°C

Contact Now

UP-5009 Mooney Viscometer Suitable for Testing Raw Rubber Compounds and Scorch Properties

Product Overview

The Mooney Viscometer is essential equipment in the rubber industry for measuring viscosity and scorch characteristics of uncured rubber materials, including raw rubber and mixed compounds. This instrument evaluates machining performance by measuring resistance to rotor rotation and integrates three testing functions in one machine: Mooney viscosity, vulcanization scorch, and stress relaxation testing.

Compliance Standards

ASTM-D1646 Mooney viscosity and scorch test standard
ISO 289-1 Mooney viscosity
ISO 289-2 Pre-vulcanization Characteristics
ISO 289-3 Mooney Value Increment
ISO 289-4 Stress Relaxation

Technical Specifications

Parameter	Specification
Control Temperature Range	Normal temperature ~ 200°C
Temperature Display Resolution	0.01°C
Temperature Control Accuracy	±0.3°C
Calibration Accuracy	Mooney value ±0.5
Rotor Speed	2 rotation/min ±0.02 rotation/min
Torque Range	Mooney value 0~200
Torque Resolution	Mooney value 0.1
Print Content	Date, time, temperature, Mooney scorch curve and MV, T5, T35, T3, T18, @15, @30
Power	50HZ, ~220V±10%

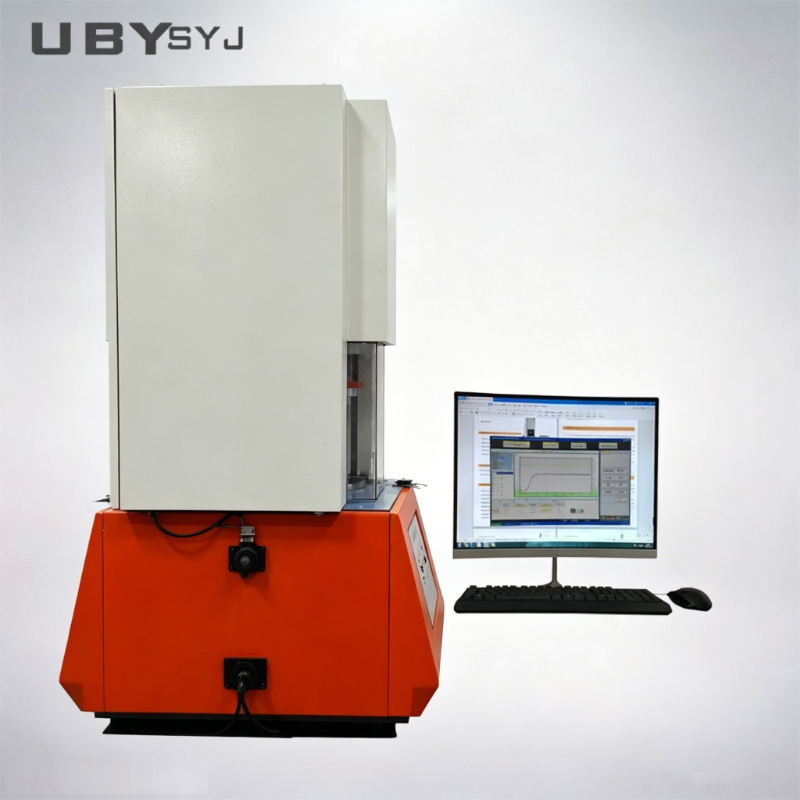

Product Images

UP-5009 Mooney Viscometer with ±0.3°C Temperature Control Accuracy and 2 rpm Rotor Speed for Rubber Testing

Our Service Process

Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide pricing based on customer specifications.

Specifications Customization Process

We create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery Process

Machines are manufactured according to confirmed requirements with production updates, final confirmation photos, calibration services, and timely delivery coordination.

Installation and After-Sales Service

We provide field installation services and comprehensive after-sales support.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance (extended to 14 months considering sea transportation).

For technical support, contact us via email or phone. We diagnose issues through conversation or video chat and provide solutions within 24-48 hours after problem confirmation.

What about the delivery term?

Standard machines in stock: 3-7 working days

Custom orders: 15-20 working days after payment

Expedited arrangements available for urgent requirements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
