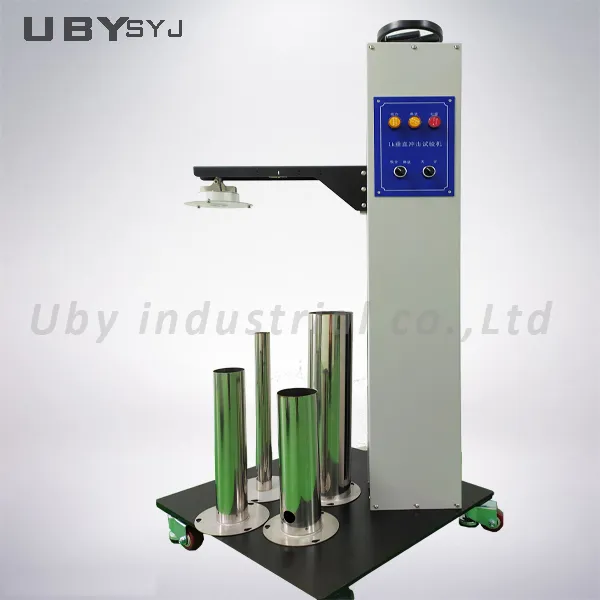

UP-3012 IK Code High Energy Pendulum Impact Tester
Product Overview
This testing device conforms to IEC62262 and is used for mechanical strength testing of sheet metal components such as substation arks and metalloid electric energy metering cubicles. The mounting bracket and impact angle are adjustable, designed for energy impact testing with energy levels exceeding 2J.
Technical Parameters
Pendulum Specifications:
- Length: 1000mm
- External diameter: 15.9 mm
- Thickness: 1.5 mm
- Material: Steel
The impact height is adjustable from 200-1200mm and can be customized. The impact apparatus can be moved on all sides.
Striking Elements Features
| Energy (J) |
≤1 ±10% |
2 ±5% |
5 ±5% |
10 ±5% |
20 ±5% |
50 ±5% |
| Equivalent mass ±2% (kg) |
0.25(0.2) |
0.5 |
1.7 |
5 |
5 |
10 |
| Material |
Nylon |
Steel |
Steel |
Steel |
Steel |
Steel |
| R (mm) |
10 |
25 |
25 |
50 |
50 |
50 |
| D (mm) |
18.5(20) |
35 |
60 |
80 |
100 |
125 |
| f (mm) |
6.2(10) |
7 |
10 |
20 |
20 |
25 |
| r (mm) |
- |
- |
6 |
- |
10 |
17 |
Height of Falling
| Energy (J) |
0.14 |
0.2 |
(0.3) |
0.35 |
(0.4) |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
50 |
| Equivalent mass (kg) |
0.25 |
(0.2) |
0.25 |
(0.2) |
0.25 |
(0.2) |
(0.2) |
0.25 |
0.25 |
0.5 |
1.7 |
5 |
10 |
| Dropping height ±1% (mm) |
56 |
(100) |
80 |
(150) |
140 |
(200) |
(250) |
200 |
280 |
400 |
300 |
200 |
400 |
IK Code and Corresponding Impact Energy
| IK Code |
IK00 |
IK01 |
IK02 |
IK03 |
IK04 |
IK05 |
IK06 |
IK07 |
IK08 |
IK09 |
IK10 |
| Impact Energy (J) |
a |
0.14 |
0.2 |
0.35 |
0.5 |
0.7 |
1 |
2 |
5 |
10 |
20 |
